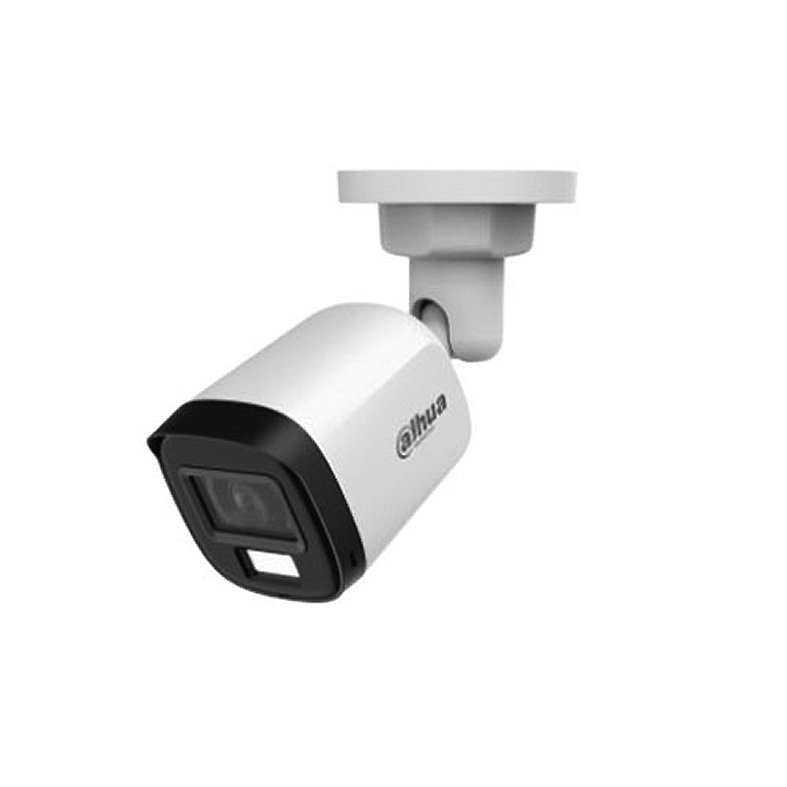

DAHUA -HAC-B1A21P-U-UL-A 2M BULLET CAMERA
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s;
NTSC: 1/30 s–1/100,000 s
Min. Illumination
0.02 lux@F2.0 (Color, 30 IRE);
0.002 lux@F2.0 (B/W, 30 IRE);
0 lux (Illuminator on)
S/N Ratio
>65 dB
Illumination Distance
IR: 30 m (98.43 ft);
Warm light: 20 m (65.62 ft)
Illuminator On/Off Control
Auto; Manual
Illuminator Number
2 (Warm light);2 (IR light)
Angle Adjustment
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm; 6 mm
Max. Aperture
F2.0
Field of View
2.8 mm: H: 100°; V: 54°; D: 117°
3.6 mm: H: 80°; V: 43°; D: 94°
6 mm: H: 43°; V: 24°; D: 50°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.8 m (2.62 ft)
6 mm: 2.4 m (7.87 ft)
Resolution
1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night
White Balance
Auto;Area white balance
Gain Control
Auto;Manual
Noise Reduction
2D NR
Illumination Mode
Smart IR&WL; WL Mode; IR Mode
Mirror
Yes
Privacy Masking
Off/On (8 areas, rectangle)
Certification
Certifications
CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035
Port
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input
One channel built-in Mic
Power
Storage Humidity
<95% (RH), non-condensing
Protection
IP67
Anti-corrosion Level
Basic Protection
Structure
Casing Material
Plastic
Product Dimensions
146.1 mm × 70.0 mm × 69.8 mm (5.75″ × 2.76″ × 2.75″)
Net Weight
0.15 kg (0.33 lb)
Gross Weight
0.23 kg (0.51 lb)
Installation
Wall mount; ceiling mount; vertical pole mount
